Product Name:

AT500 3G Tracker


Description:


Feature:

Item Functions
Communication Location Data transmitting-GPRS(TCP/UDP)
Commands- SMS/GPRS/Serial port
Position Tracking
  • Real-time location monitoring/querying
  • Track by moving( time interval)
  • Track by parking(time interval)
  • Track by distance
  • Cornering report
GPS Mileage GPS Mileage report/GPS mileage coefficient adjustable
Geo-fence 25 rectangle Geo-fences
Alarm(Event)
  • SOS alarm (SMS/Cellular Network)
  • Main Power supply cut off(SMS/Cellular Network)
  • Ignition On report(Cellular Network)
  • Over Speed alarm(Cellular Network)
  • Geo-fence alarm(Cellular Network)
  • Towing alarm(Cellular Network)
  • Harsh Braking alarm(Cellular Network)
  • Harsh Acceleration alarm(Cellular Network)
I/O
  • 3 digital input (Ignition detecting, SOS button, Input3-reserved)
  • 1 digital output- fuel pump/engine circuit cut
  • 6 reserved digital input (Optional)
Other
  • 2 serial port(RS232/RS232)
  • 1-wire® for temperature (Optional)
  • Two-way voice communication(Optional)
  • Listen in with microphone(Optional)
  • 1 Pulse input(Optional)
  • 1 Analog input(Optional)
Buffer Data in Buffer when in Cellular Network blind area
Initialization Initialize tracker’s Parameters via SMS/ Cellular Network /Serial port
Upgrading firmware via OTA or Serial port


General Technical Specifications:

Item Specifications
Gift Box Dimension 177*120*50mm

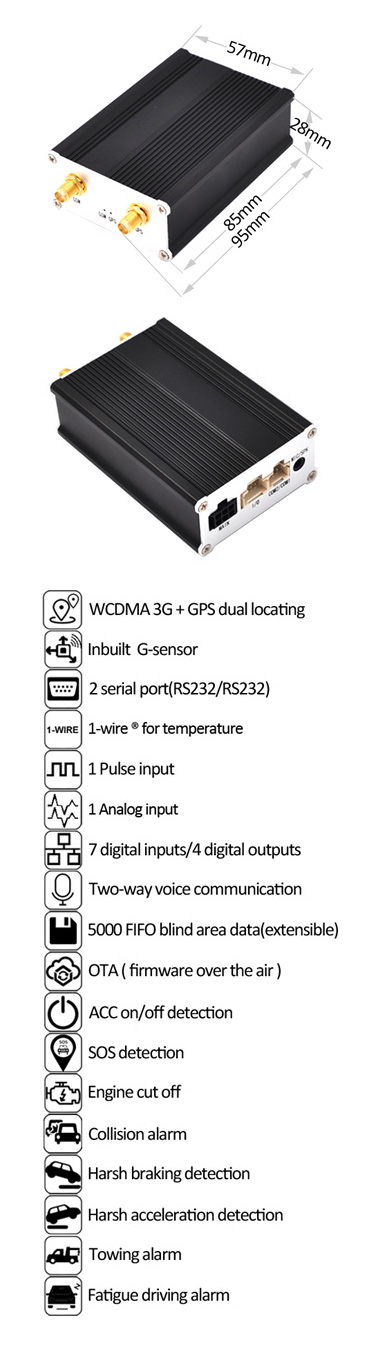

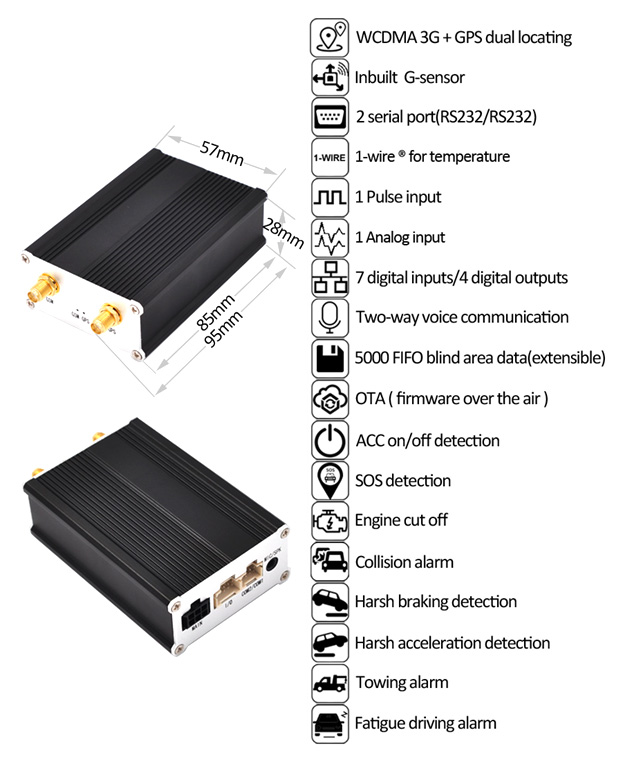

Tracker Dimension 85*67*28mm
Tracker Color Black
Weight
  • Tracker weight : 0.25kg
  • Total package: 0.5kg
Power Supply DC 9V -- 100V
Working Current 80 mA(DC 12V)
Processor ARM7
Back-up battery Built-in 450mAh, support 2 hour working when fully charged.
Operating temperature -40℃ -- 85℃
Operating humidity 5% -- 95%
LED Light Indicators Green led and Red led light indicates GPS and Cellular Network status respectively
Power Switch 1 Backup battery switch on Mainboard
Disassembly 1 disassembly detecting button on Mainboard
I/O Port
    3 digital inputs
  • Ignition detecting –positive trigger
  • SOS detecting-negative trigger
  • Input3 (Reserved)- positive trigger
  • 1 digital output
  • Fuel pump/engine circuit cut- Output GND (connect to a normal close relay)
Others
  • 2 serial port(RS232/RS232)
  • 1-wire® for temperature(Optional)
  • Two-way voice communication(Optional)
  • Listen in with microphone(Optional)
  • 1 Pulse input(Optional)
  • 1 Analog input(Optional)
GSM Module
    Chipset
  • QUECTEL UC15-E (3G)
  • Frequency
  • 850MHz /900MHz / 1800MHz / 1900 MHz / 2100Mhz@UMTS
GPS Module
    Chipset
  • SKYLAB SKG12BL
  • Positioning Accuracy
  • < 5m (95%)
  • Cold start time
  • < 23s(in average)
  • Warm start time
  • < 3 s (in average)
  • Acquisition Sensitivity
  • -148dbm
  • GPS Frequency
  • 1575.42 MHz
