AT02 3G Tracker

---

Description:

---

The AT02 is a Mini GPS tracker designed for a wide range of vehicle tracking application. It has basic I/O interfaces that can be used for GPS vehicle tracking. Its internal GPS antenna has superior sensitivity and fast time to be located. It can be monitored in real time or periodically tracked by a backend server and mobile devices.

---

Feature:

---

Item	Functions
Communication	Location Data transmitting-GPRS(TCP/UDP) Commands- SMS/GPRS/Serial port
Position Tracking	Real-time location monitoring/querying Track by moving( time interval) Track by parking(time interval) Track by distance Cornering report
GPS Mileage	GPS Mileage report/GPS mileage coefficient adjustable
Geo-fence	25 rectangle Geo-fences
Alarm(Event)	SOS alarm (SMS/GRPS) Main Power supply cut off(SMS/GRPS) Ignition On report(GPRS) Over Speed alarm(GPRS) Geo-fence alarm(GPRS) Towing alarm(GPRS) Harsh Braking alarm(GPRS) Harsh Acceleration alarm(GPRS)
I/O	3 digital input (Ignition detecting, SOS button, Input3-reserved) 1 digital output- fuel pump/engine circuit cut
Buffer	Data in Buffer when in GPRS blind area
Initialization	Initialize tracker’s Parameters via SMS/GPRS/Serial port
Waterproof	IP66
Upgrading	firmware via OTA or Serial port

---

General Technical Specifications:

---

Item	Specifications
Gift Box Dimension	120*120*50mm

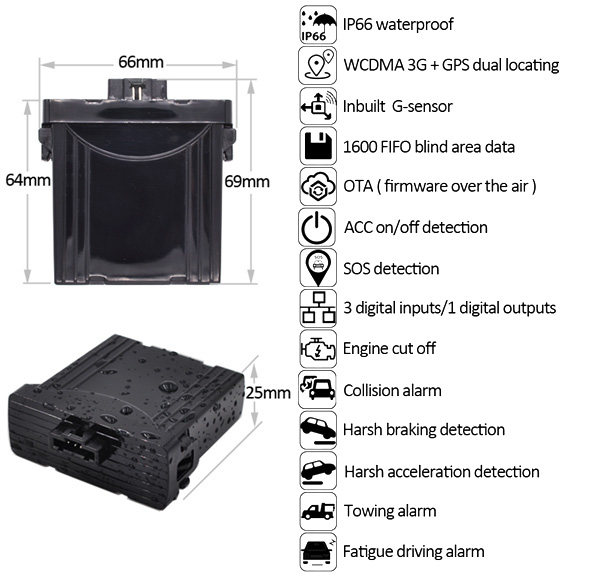

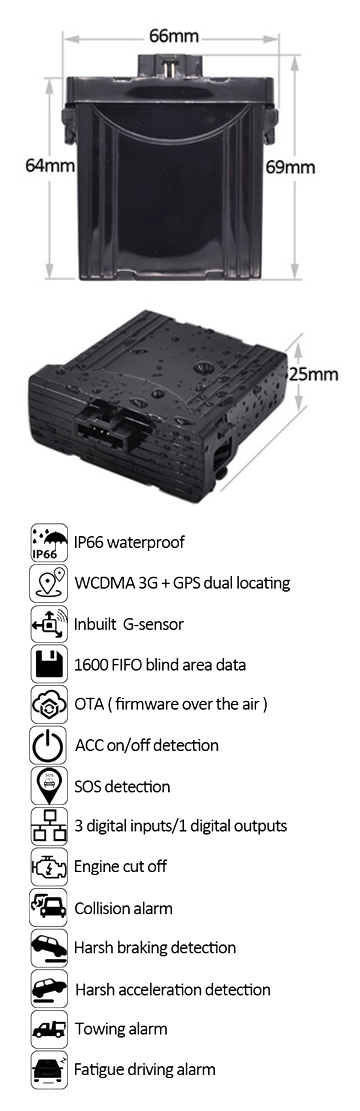

Tracker Dimension	66*60*25mm
Tracker Color	Black
Weight	Tracker weight : 0.1kg Total package: 0.21kg
Power Supply	DC 9V -- 100V
Working Current	40 mA(DC 12V)
Back-up battery	Built-in 160mAh, support 1 hour working when fully charged. (160 to 450mAh customized)
Operating temperature	-25℃ -- 75℃
Operating humidity	5% -- 95%
LED Indicator	Green led and Red led light indicates GPS and GSM status respectively
Power Switch	1 Backup battery switch on Mainboard
I/O Port	3 digital inputs Ignition detecting –positive trigger SOS detecting-negative trigger Input3 (Reserved)- positive trigger 1 digital output Fuel pump/engine circuit cut- Output GND (connect to a normal close relay)
GSM Module	Chipset FIBOCOM H330S Frequency 850MHz / 900MHz / 1800MHz / 1900 MHz Quad-band WCDMA 2100MHz / 1900Mhz / 850MHZ/ 900Mhz.
